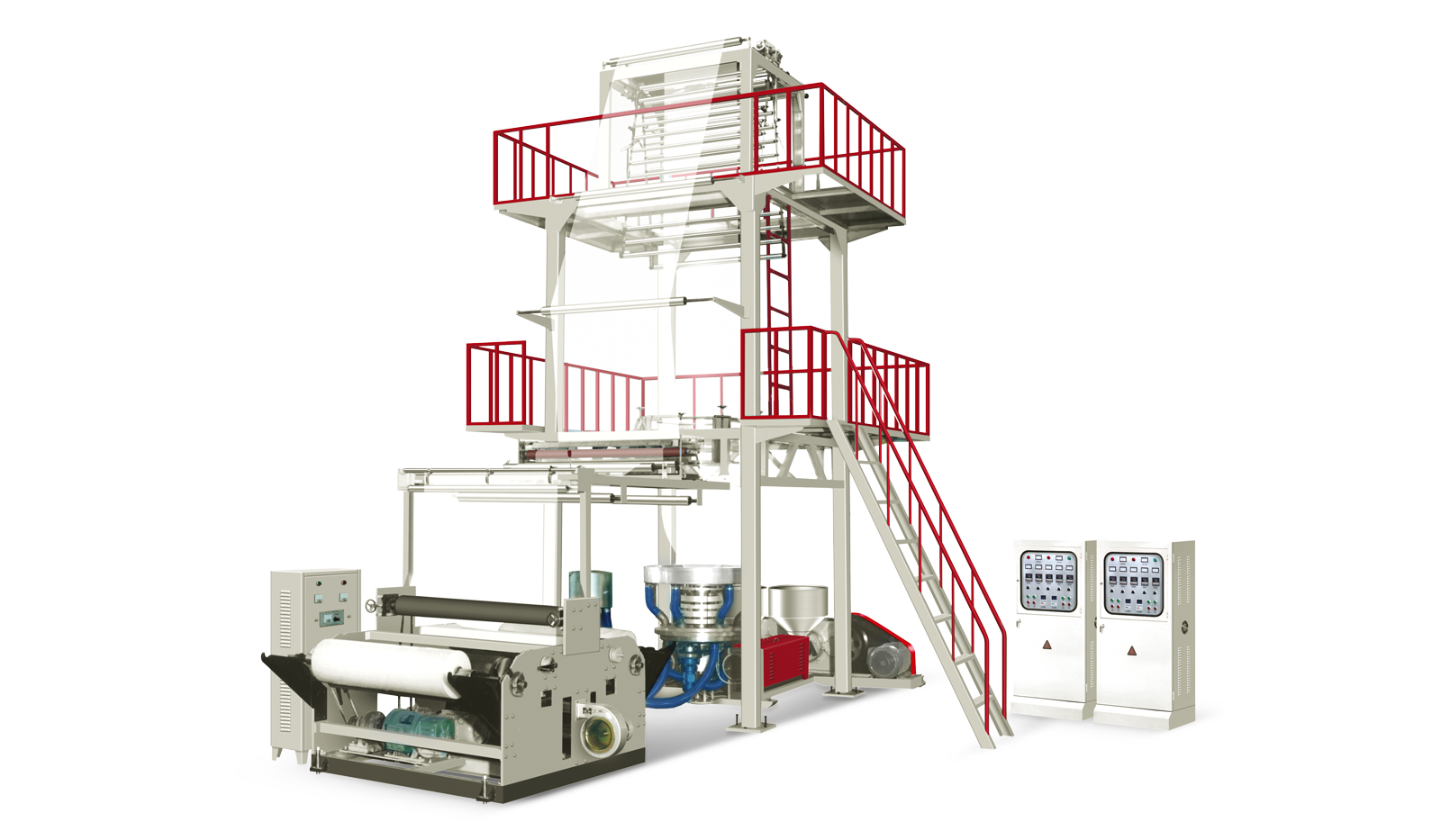

Product Description
Its main unit is designed with layer-stepping 360°die continuous rotary device, high-effective, double vents air ring with high-effective cooling function, quick screen changing device, and surface friction type double cut double winders etc. on the base of worldwide advanced technologies used in similar products.
Its main unit can be used to manufacture composite films with raw materials such as LDPE, LLDPE and HDPE. These films feature good barrier property, moisture and frost, and oil resistance, and therefore can be widely used for packaging fresh fruits, meat food, fresh milk and Liquid beverage etc.
Technical Specifications
| Model |
F2B-RD-800 |
F2B-RD-1000 |
F2B-RD-1200 |
F2B-RD-1500 |
| Applicable Materials |
LDPE LLDPE HDPE |
| Width of Film |
800 |
1000 |
1200 |
1500 |
| Thickness of Film |
0.02-0.10 |
| Max. Extrusion Output |
75kg/h |
100kg/h |
120kg/h |
140kg/h |
| Screw Diameter |
Φ45x2 |
Φ50x2 |
Φ55x2 |
Φ60x2 |
| Screw L/D Ratio |
30:1 |
| Rotate Speed of Screw |
10-100r/min |
| Power of Main Engine |
11x2 |
15x2 |
18.5x2 |
22x2 |
| Diameter of Die Orifice |
Φ200 |
Φ250 |
Φ300 |
Φ350 |
| Air-ring Structure |
Double Vents Air Ring |
| Die-head Rotary Form |
360° Continuous Rotation |
| Total Power |
40 |
45 |
55 |
70 |
| Weight of Machine |
3.5 |
4 |
5 |
5.5 |
| Overall Dimension |
6.4x4x4.8 |
4.2x3.2x4.6 |
4.6x3.4x5 |
5.2x3.7x6 |
| Model |
F2B-RD-1700 |
F2B-RD-2000 |
F2B-RD-2500 |
F2B-RD-3000 |
| Applicable Materials |
LDPE LLDPE HDPE |
| Width of Film |
1700 |
2000 |
2500 |
3000 |
| Thickness of Film |
0.03-0.10 |
| Max. Extrusion Output |
140kg/h |
175kg/h |
200kg/h |
230kg/h |
| Screw Diameter |
Φ60x2 |
Φ70x2 |
Φ80x2 |
Φ90x2 |
| Screw L/D Ratio |
30:1 |
| Rotate Speed of Screw |
10-100r/min |
| Power of Main Engine |
22x2 |
37x2 |
45x2 |
55x2 |
| Diameter of Die Orifice |
Φ420 |
Φ500 |
Φ600 |
Φ700 |
| Air-ring Structure |
Double Vents Air Ring |
| Die-head Rotary Form |
360° Continuous Rotation |
| Total Power |
80 |
120 |
150 |
180 |
| Weight of Machine |
6 |
8.5 |
11 |
13 |
| Overall Dimension |
5.2x4x6.2 |
8x4.2x8 |
9x4.5x9.6 |
10x5x11 |
The data is subject to change without prior notice.
